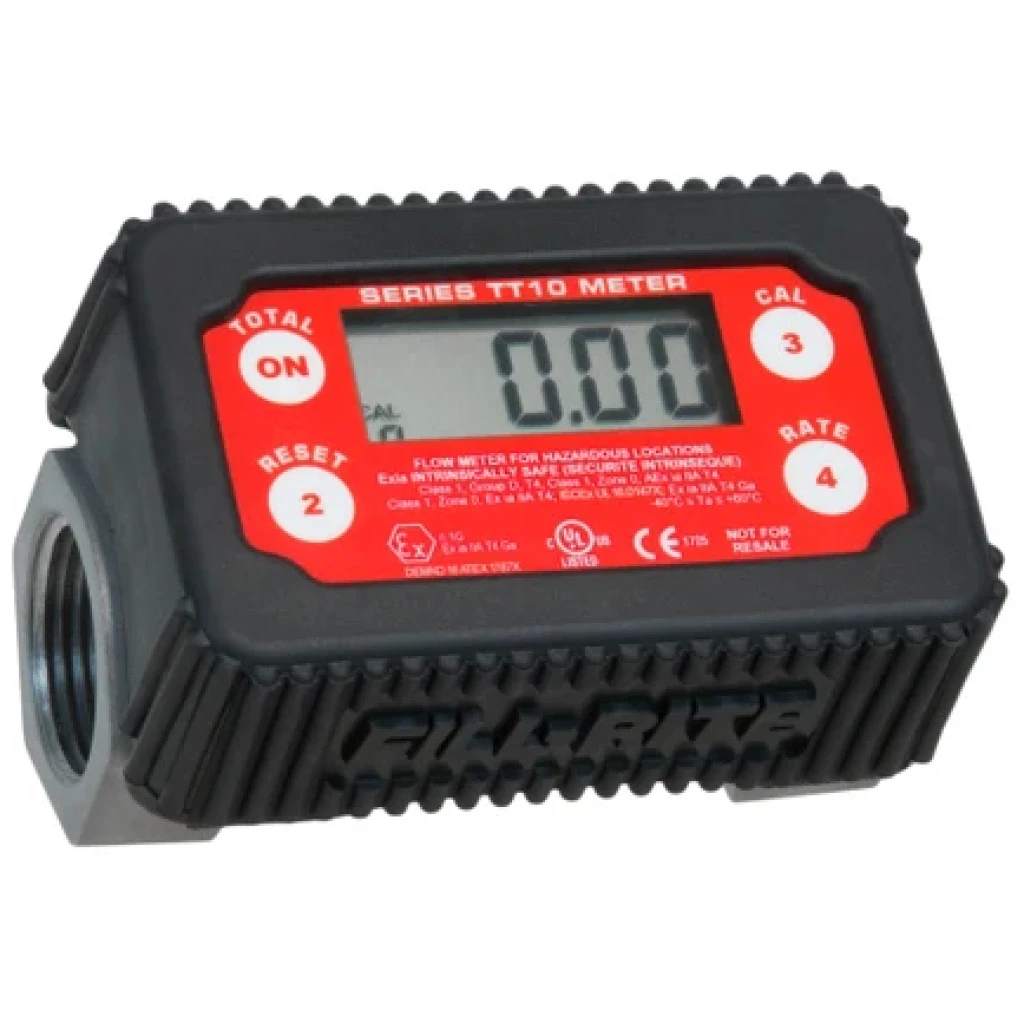

Fill-Rite 2-35 GPM 4-Digit Digital Fuel Transfer Meter #TT10AN

Accurate within 1%, the Fill-Rite TT10AN In-line Digital Turbine Meter sets the standard for accuracy, ease of use, and safety. It has factory presets for 18 fluids and more safety approvals than any other meter in its class. Replaceable (2) AA batteries.

Fill-Rite’s TT10 Series of digital fuel transfer meters are extremely accurate, durable, and can be installed both in-line at the nozzle or mounted directly at the pump.

FEATURES
The TT10AN is a 4-digit digital fuel transfer meter. This meter is equipped with NPT threads and is designed to register 2-35 gallons per minute at +/-1% accuracy. This meter bundle includes (2) ¾” reducer bushings.

Versatile Construction – models available in aluminum, polypropylene, and nickel-plated aluminum for varying fluid compatibility
Extreme Accuracy – measures fluids within +/- 1% accuracy, ensuring your record-keeping is precise as possible
Flexible Use – in-line design allows for installation at the pump or at the end of the discharge hose, with an LCD display that rotates 180° for your convenience
Complete Customization – track fluids in any user-created unit in addition to preset measurements like gallons, litres, ounces, pints, and quarts
Ready Out of Box – factory calibrated for over 20 different fluids makes installation quick, saving you time and eliminating frustration
Impact Resistant – external rubber boot provides maximum protection and impact resistance for tougher applications

PERFORMANCE
Flowrate Range 2-35GPM
Inlet / Outlet Thread Size (in.) NPT / NPT
Accuracy (+/- %) 1
Repeatability (+/- %) 0.3
Display Type LCD
Display Digits 4
Totalizer
Pulse Output
Compatible Fluids Gasoline Diesel Heptane Kerosene Mineral Spirits
Max Operating Pressure (PSI) 50

DIMENSIONS
Assembled Product Height x Width x Depth (in.) N/A x N/A x 3
Assembled Product Weight (lbs.) 1
Package Height x Width x Depth (in.) 9.25 x 3.5 x 7
Gross Weight (lbs.) 1.600
